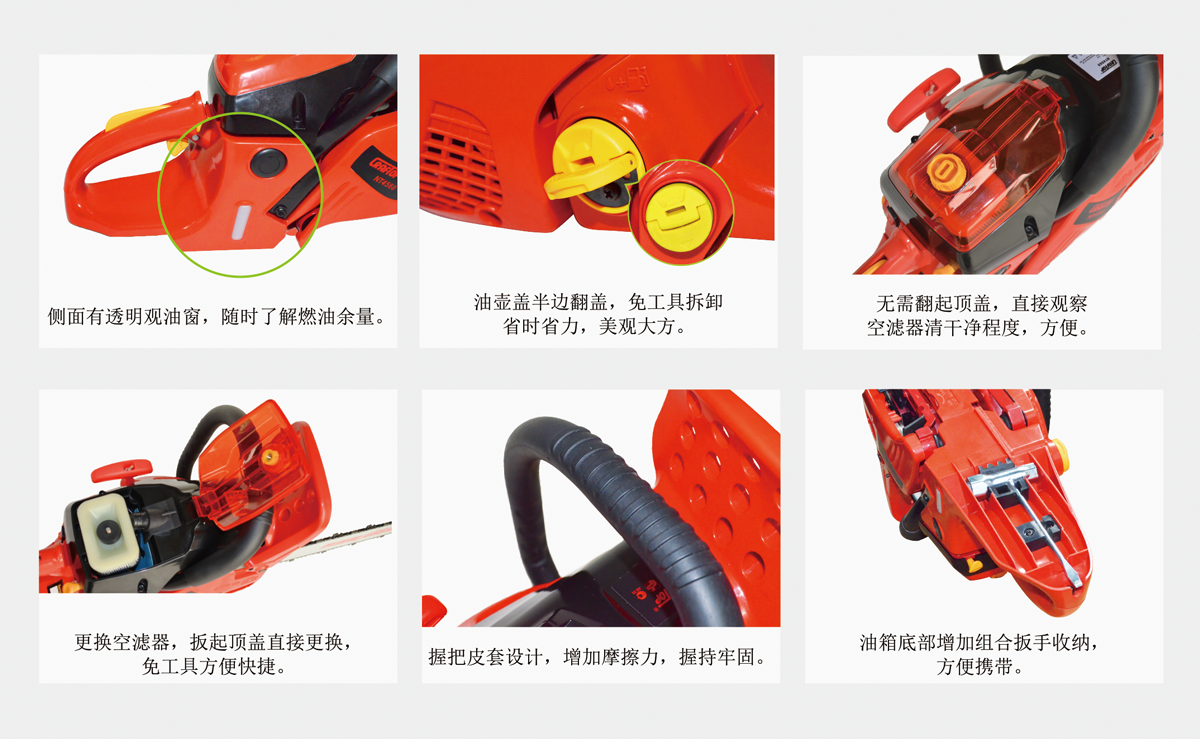

1. One-piece molding, ergonomics, more comfortable and labor-saving operation;
2. Tool-free disassembly of the air filter cover, convenient and easy to install;
3. The power is stable and strong, suitable for most forestry, fire fighting and agricultural operations;
4. The bottom storage function is convenient for carrying tools.

Displacement	power	weight
54.5cc	2.2kw/3.0hp	5.3kg
Length of guide plate		Pick/tooth width
20"/51cm		.325"/.058"

Engine type	Two stroke air-cooled
Displacement (cc)	54.5cc
Bore x stroke (mm)	45.2×34mm
Rated output power × speed (kw/rpm)	2.2kw/8000rpm
Idle speed (rpm)	3000rpm
Fuel mixture ratio (gasoline: two-stroke engine oil)	25:1
Fuel tank capacity (ml)	550ml
Engine oil tank capacity (ml)	260ml
Chain pitch (inch)	.325"
Link tooth width (inch)	.063"
Standard guide plate size (inch)	20"
Optional guide plate size (inch)	16"/18"/20"/22"
Suitable for log diameter (cm)	20cm-60cm
Net weight/Gross weight (kg)*	5.3kg/8.0kg
